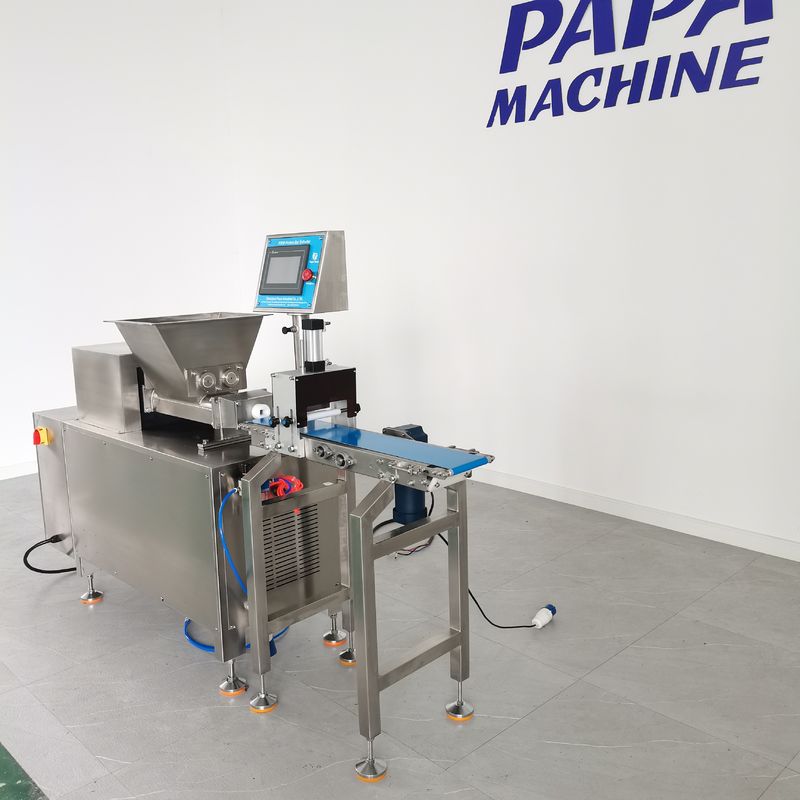

Papa new upgraded Power bar extruder machine for hard bar making
Power bar extruder machine Description:
The Papa P308 power bar extruder is mainly designed for hard and dry material making. The motor of the energy bar machine that we use is a 380V three-phase motor, which can generate very strong torque. All metal components, including extrusion screws, are made of all 304 stainless steel.
In fact, our P308 powerful energy bar extruder has solved the problem of hard mixtures or dough being unable to be extruded. Customers can use this machine to make almost all kinds of bars and pastries, such as protein bars, coconut bars, energy bars, fruit bars, chocolate bars, vegan bars, nutrition bars, nut bars, biscuits, fish biscuits, halal food, etc Non allergic food sticks and other food sticks, whether the mixture or dough is hard or soft.
Power bar extruder machine Specifications:
| Model | P308 |
|---|---|
| Capacity | 60-80pcs/min |
| Product shape | bar, round, strip, square, pyramid, bites, etc. |
| Product weight | 10-250g |
| Voltage | 380V, three phase |
| Power | 4.0kw |
| Dimension | 2550*760*1400mm |
| Weight | 400KG |
Protein bar extruder features:
*The body and hopper are made of 304 stainless steel.
*Customized nozzles can be used to produce bars of different sizes.
*It can produce multiple lines at once, which is not only suitable for small capacity businesses, but also for large capacity businesses.
*The extruder and cutting machine are designed separately, making the machine easy to clean and cut.
*The machine is fully packaged and shipped before shipment, and does not require installation. Simply connect the power supply.
*Automatic control, just change the numbers on the screen.
Automatic cutter with conveyor(PLC control) features:
*Carbon steel cutting blade coated with polytetra fluoroethylene, suitable for cutting various bars.
*The pressure roller in front of the cutting blade helps to stabilize the bar and prevent sticking.
*The safety protection device around the cutter can penetrate the interior, making it easy to disassemble and clean.
*By changing the numbers in the touch screen panel, speed can be easily controlled.
*The safety cover on the conveyor belt ensures production safety.
*The conveyor speed can be adjusted according to the bar size.
Application : protein bar,cookie bar,fruit bar,date bar,date bites,energy bar,coconut bar,chocolate bar ,Nutrition bar
Bar produced by P308 Protein bar extruder:
Application:
P308 Horizontal protein energy bar extruder video:
Hard protein energy bar extruder cutting machine video:
Related Product:
P160 Automatic encrusting machine
P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.
Optional devices:
1. Chocolate enrober
Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.
2. Planetary mixer
The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.
3. Flow wrapping machine
Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.
